IL-008-01 Recirculating Chiller
IL-008-01 Recirculating Chiller

IL-008-01 Recirculating Chiller

Brand:NANBEI

Model:IL-008-01

Application:

product details

Recirculating chiller

1. Low noise pump                      Durable and economical SANSO water pump is imported to eliminate the trouble of maintenance.

2. Easy for maintenance                          It is easy to maintain and clean condenser to improve the refrigerating performance and save energy.

3. Beautiful water nozzle It can be rotated for 360°. Plug and play function is provided to improve the working efficiency.

4. Automatic compressor control              The refrigerating efficiency is controlled according to the actual demand, thus to reduce use cost, wearing and prolong the service life.

5. Easy for discharge of fluid  The fluid can be discharged easily for the cleaning and maintenance of incubator.

6. Even temperature    Condenser coil is designed around for guaranteeing the even temperature inside the incubator.

Application scope: Widely applied for low temperature cooling and temperature control of hot parts of machines used for research, analysis and measuring equipment and industrial

mechanical equipment.

1. Low noise pump                      Durable and economical SANSO water pump is imported to eliminate the trouble of maintenance.

2. Easy for maintenance                          It is easy to maintain and clean condenser to improve the refrigerating performance and save energy.

3. Beautiful water nozzle It can be rotated for 360°. Plug and play function is provided to improve the working efficiency.

4. Automatic compressor control              The refrigerating efficiency is controlled according to the actual demand, thus to reduce use cost, wearing and prolong the service life.

5. Easy for discharge of fluid  The fluid can be discharged easily for the cleaning and maintenance of incubator.

6. Even temperature    Condenser coil is designed around for guaranteeing the even

temperature inside the incubator.

Application scope: Widely applied for low temperature cooling and temperature control of hot parts of machines used for research, analysis and measuring equipment and industrial mechanical equipment.

Product parameters:

Model

IL-008-01

IL-008-02

IL-008-03

IL-008-04

IL-008-05

Convection method

Closed circulating

Temperature control method

Fuzzy logistic  PID control method

Temperature range

Negative 20℃~20℃ (without heater)

Temperature display accuracy

1℃

Temperature control accuracy

±1℃

Temperature control evenness

±1℃

Working room temperature

5℃~35℃

Max. flow rate

33L/min

16.5L/min

14L/min

Max. lift

14m

10.3m

4.2m

Overall dimension          (mm)·Weight

 W413*D705*H765 About 58KG

W413*D705*H765 About 52KG

W297*D590*H705 About 45KG

W297*D550*H665 About 36KG

W237*D455*H665 About 34KG

Inner dimension         (mm)· volume

 W242*D452*H213 About 23.3L

W187*D392*H213 About 15.6L

W162*D332*H193 About 10.5L

W152*D322*H153 About 7.5L

W152*D192*H153 About 4.5L

External circulating water gap

Tubing with outside diameter being 18mm

Tubing with outside diameter being 11mm

Refrigerating power· refrigerant

830W·R22

725W·R22

600W·R22

425W·R134a

358W·R134a

Power voltage

AC-220V 50/60HZ

1.Performance parameter test under empty load: Ambient temperature of 20℃, ambient humidity of 50%RH.

2.The change of product appearance and parameter will not be notified additionally. Product appearance may deviate due to shooting and printing reasons.

※Note: The product can be customerized according to the temperature control scope.

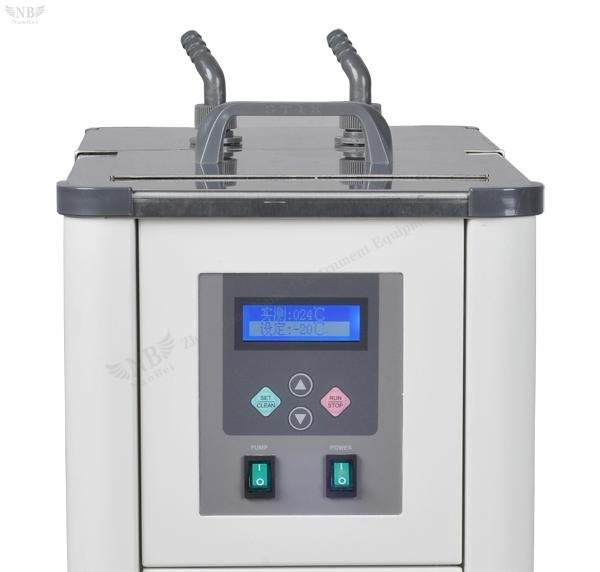

water chiller
